DIY - Taurus X Intermediate shaft seal replacement

Trevor M
Regular Member
Posts: 19
Joined: Sat Mar 10, 2012 12:36 pm

DIY - Taurus X Intermediate shaft seal replacement

Post by Trevor M » Thu Mar 15, 2012 7:06 pm

A common complaint of Ford’s line of vehicles that have AWD is an oil leak from the right front axle shaft. This leak can take on two forms, and depending on the oil that’s leaking will indicate which seal is shot.
This specific problem is limited to vehicles with all wheel drive. On AWD vehicles there is a device called a Power Takeoff Unit (PTU) bolted to the Transaxle. The PTU’s job is to take power from the transaxle and send it out towards the rear axle by a driveshaft.
There’s nothing fancy inside the PTU… Some gears to deflect rotation 90°, bearings and seals in a housing. The gears and bearings sit in a oil bath of synthetic 75w-140 gear lube.
The PTU is constructed so the right side intermediate axle shaft passes through from the transaxle differential out to the passenger wheel. This is where the problem is….Where the intermediate shaft enters the PTU an oil leak develops. Normally, a small oil leak on a vehicle isn’t such a big deal. The odd drip here or there will go un-noticed but on Ford’s AWD vehicles this drip is directly above an exhaust pipe. When the oil drips down onto the hot exhaust it creates some very noticeable smoke. This smoke will usually flow up and into the HVAC air intakes causing the cabin to fill up with a very unpleasant (and unhealthy) smell. Health and safety concerns from this are from the oils that vaporized may be toxic and carcinogenic. The deposit of oily film it leaves on the inside of the windshield can obscure vision and create a hazard driving when the sun is low on the horizon or at night. Not to mention the distinct possibility of fire.
Those with warranty will have the repair covered but Ford still insists to downplay these defects claiming it’s not that widespread. Several revisions for the seal repair kit are proof that Ford knows about this problem.
A recall or extended warranty for this defect is in order. Ford needs to step up and fix this now.
I wanted to write this DIY for all those Taurus X and Edge owners out there that have vehicles that are out of warranty just like me. As these cars age this repair will become more needed. Taking it to the dealer is costly and not always an option.

The lineup of vehicles this affects is:
FORD:
2008-2009 Taurus X
2008-2010 Taurus
2007-2010 Edge
2009-2010 Flex

LINCOLN:
2009-2010 MKS
2007-2010 MKX
2010 MKD

MERCURY:
2008-2009 Sable

Also, it’s been reported this defect relentlessly carries on into the 2011 model year.

The leak takes on two forms. To know which seal is leaking, you’ll have to visually inspect the intermediate shaft on the passenger side. The color of the oil is the best indicator. TSB 09-25-7 has a Diagnosis section that details where and what to look for. Essentially, if the oil is red then the intermediate shaft is leaking ATF (figure 1 in TSB 09-25-7).
If the oil is brown/black then the PTU seal is reported leaking (figure 2 in TSB 09-25-7).

Edit: When I originally posted this I forgot to add pictures of what the leak looks like. Here's a couple showing the typical leak. The first shows the exhaust pipe wet with oil that's dripped down. This is what causes the smoke in the cabin. Depending on how fast you're traveling or which way the wind blows, this smoke will get sucked into the vehicles HVAC and into the cabin.

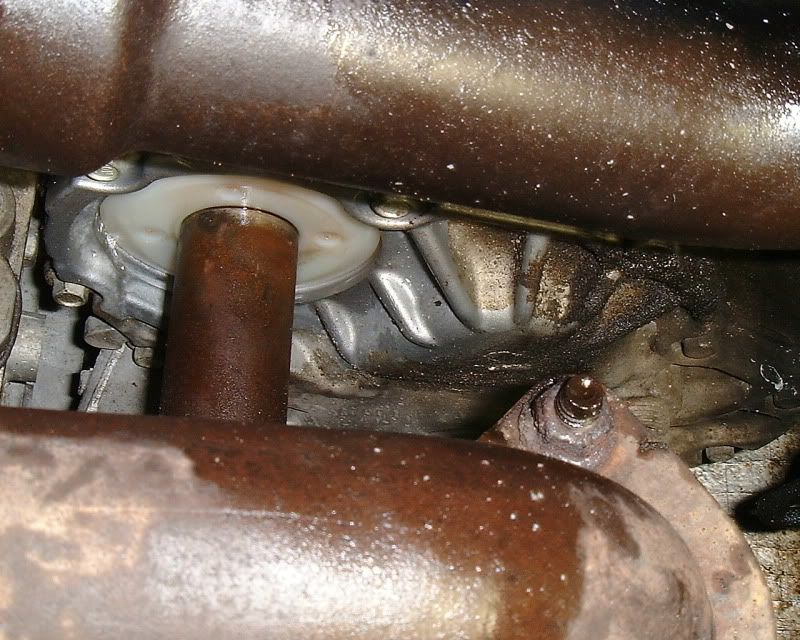

This shows the leak itself. Notice the area is soaked with oil and is washed clean where the drip is. In my case the oil is red which indicated transmission fluid and NOT PTU fluid.

Which seal kit to order will depend on the color of oil and where the leak comes from.

In this DIY I replace the intermediate shaft seal only and leave the PTU untouched (because it wasn’t leaking). If you want to change the PTU seal it is STRONGLY recommended to replace the intermediate shaft seal at the same time even if it’s not leaking. The reason is removal and replacement of the intermediate shaft will damage the seal from the splines. Installing a new intermediate shaft seal is the only way to assure it won’t leak after you assemble.


Stuff you’ll need:

Seal kit 8T4Z-7275-DD
But this from the dealer ($$$) or get it online for much cheaper but pay shipping. Maybe you’ll find a place that ships free if you order over $50. Just buy some oil and air filters to make up the difference. I actually ordered 8T4Z-7275-DC and they sent me –DD, maybe a revised seal kit? Funny thing, this seal kit cost me $18.00 where –CD (includes the PTU seal) was only $11.50??? More for less? Perhaps they screwed up on part numbers. Regardless, I got the seal kit and it worked.

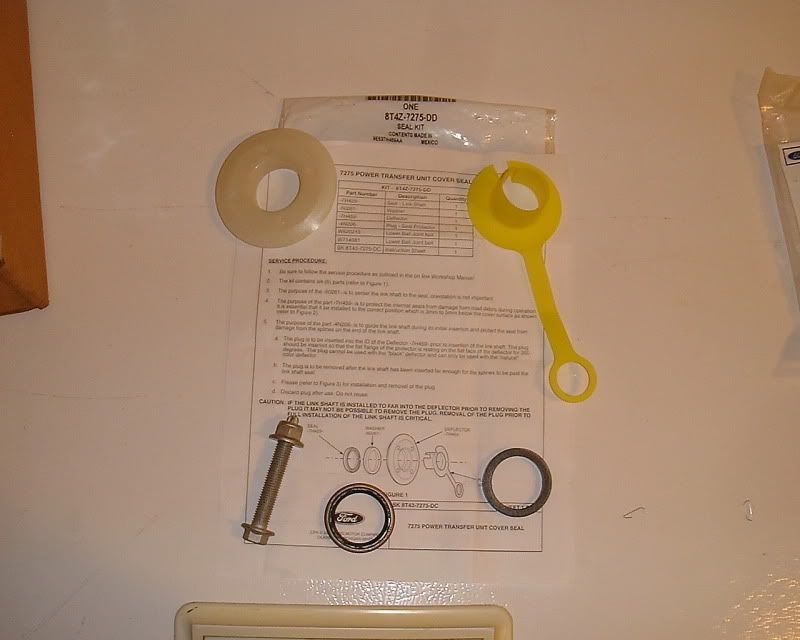

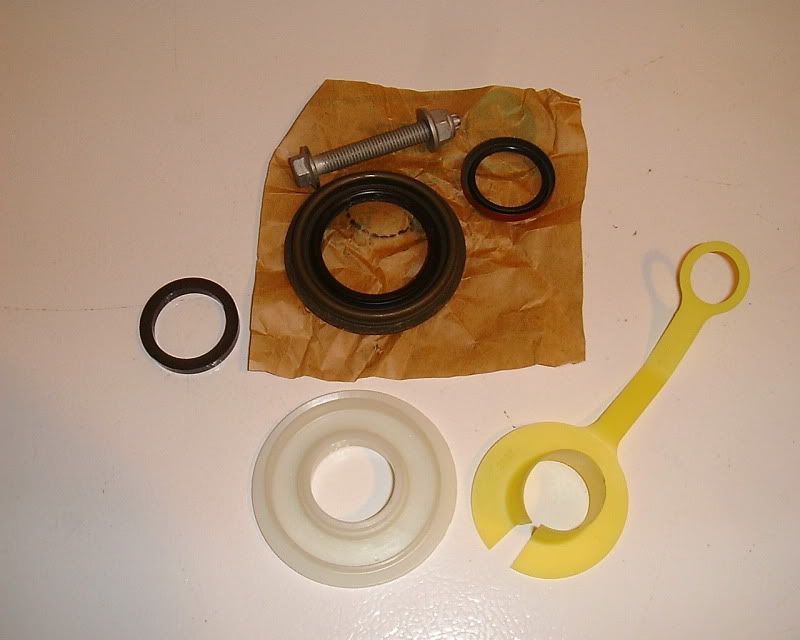

Here’s a picture of seal kit 8T4Z-7275-CD. It has all the above parts but includes the extra PTU seal.

4 liter jug of ATF
When you pull the intermediate shaft some oil will come gushing out and all during the time the shaft is out it will continuously drip. Expect to lose about 2 liters of ATF. Make sure it’s the correct type for your vehicle, it must be MERCON V or equivalent.

Rotunda (OTC)205-883 Seal Installer
Rotunda (OTC)205-882 Deflector Installer

These two special tools are for installing the seal and deflector. 205-883 installs the seal at the correct depth and ensures it’s in the bore straight. 205-882 installs the deflector and without it the chances of breaking the new deflector are high. Strongly recommend having these two tools before starting. I bought mine new but you can find used ones out there for less than half the cost of new. When I give up the Taurus X, I plan on selling these to recoup my costs. The OTC tools are very high quality and have lifetime warranties. If you know somebody that has a lathe and can spin some aluminum stock, you could make them for very little cost. Attached is a drawing if you're so inclined to make these tools. This picture is of the new shaft seal and tool 205-883.

¾” threaded rod x 36”lg
¾” nut to fit threaded rod

Find this at a hardware store. 36” is a good length for this job. Spin the nut on to create the tool for installing the new seal and deflector.

Seal puller
Made from carbon steel such as Harbor Freight #91352. Useful for pulling out the old seal from the bore.

Other stuff you’ll need:
32mm socket w/breaker bar
10mm, 18mm, 21mm wrench
8mm, 18mm, 19mm socket
13mm, 21mm deep socket
T40 Torx driver
Torque wrench
3 jaw 6” gear puller
Medium strength (BLUE) threadlocker
Propane torch or heat gun
Infrared thermometer
Flat screwdrivers
Jack and 2 jack stands
Oil drip pan


Disclaimer: Don’t make me write out a long detailed disclaimer. This post documents my experience of changing the intermediate shaft seal and fixing the leak. There may be errors or omissions from this post that I’ve overlooked. I did my best to provide accurate information. If something you do screws up your vehicle it’s not my responsibility. If you lack the necessary skills to complete this job then it’s not my responsibility either.

- Pull the intermediate shaft:
- Parking brake on
- Remove the hubcap
- With the 32mm socket and breaker bar loosen the axle shaft nut & remove.
- loosen the 5 lug nuts (19mm)
- Raise the car and support it on the jack stands resting on the front subframe, get it as high as you can
- Remove the wheel
- Remove the two bolts that holds the brake carrier to the knuckle assembly.
- Pull the brake caliper off the rotor and hang it from the strut spring with wire.
- Remove the countersunk bolt from the brake rotor (T40) and remove rotor. (optional, to make the hub/knuckle assembly lighter and easier to handle)
- Remove nut & bolt from bottom of strut to knuckle assembly (21mm)
- Remove tie rod from knuckle assembly. 21mm wrench and 10mm to back up the tie rod from spinning.
- Remove nut from lower ball joint, again 21mm and 10mm
- Remove bolt from ABS sensor (8mm) and carefully pry it out of the knuckle.
- Push down on lower control arm and separate ball joint from the knuckle.
- Install puller on hub and press the splined shaft on the CV joint out of the hub. On my vehicle this was not hard to push out.
- Slide the knuckle and hub assembly down and off the strut housing
- Remove the two nuts (13mm) from the center support bearing on the intermediate shaft
- Position a oil drip pan under the PTU
- Clean the area around the deflector with brake cleaner to remove as much dirt and grit as you can.

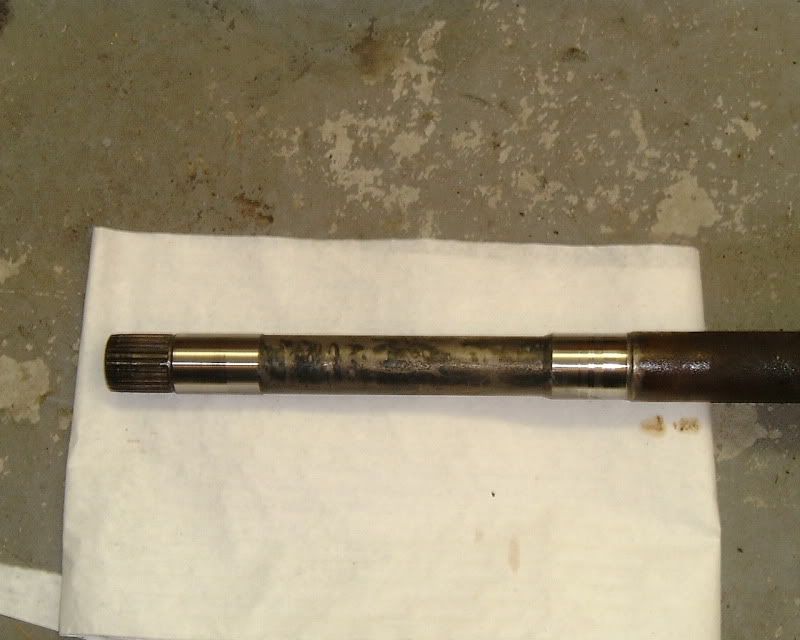

- Carefully pull the intermediate shaft out and remove. Set the shaft aside and keep it clean. Quite a bit of oil will come out with this step.
- Pull off deflector and discard. Without the special too this can be a challenge. The deflector has bump on the surface that mates with a groove that’s cut into the bore. With the deflector in this groove and shaft installed, it’s impossible for the deflector to come off. Using a blind hole bearing puller could possibly work as well if it’s the correct diameter. Someone would have to investigate this. The special tool costs $200 and looks to be a bearing puller that connects to a slide hammer. The technique I used was I heated a old gasket scraper red hot with a propane torch and used that to cut the hard plastic inside the bore. I had to heat the scraper up a couple of times to get all the way through. Once cut the deflector came off easy.
- With a clean finger, check there are no pieces of deflector still inside the PTU.
- Reach in and pull out the intermediate shaft spacer. It should come out easy by finger. If not, use the seal puller and work it out. You shouldn’t need to use force.
- Again with a seal puller, pull out the intermediate shaft seal. Pull one side at a time and work it out. It will be in there tighter than the spacer but don’t force it.
- Check the seal to ensure the metal compression spring came out with the seal

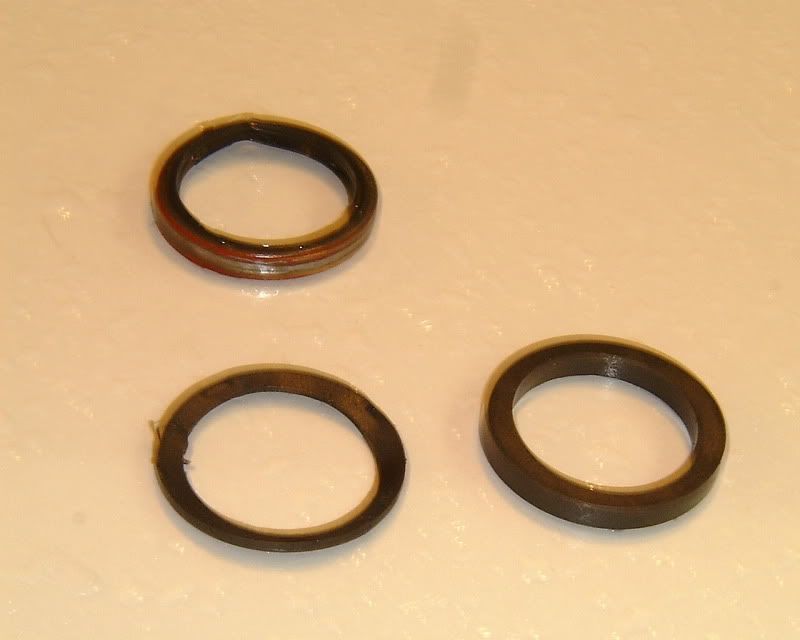

Here’s a picture of the old spacer beside the new…. Notice the wear.
- Inspect for any debris left behind from the last steps. If necessary, wash out debris with a spray of brake parts cleaner.
- All during these steps there will be a slow flow of ATF dripping out where the intermediate shaft was. Keep the drip pan in place.
- Install the ¾” nut onto the threaded rod and thread the nut on about 1.5”

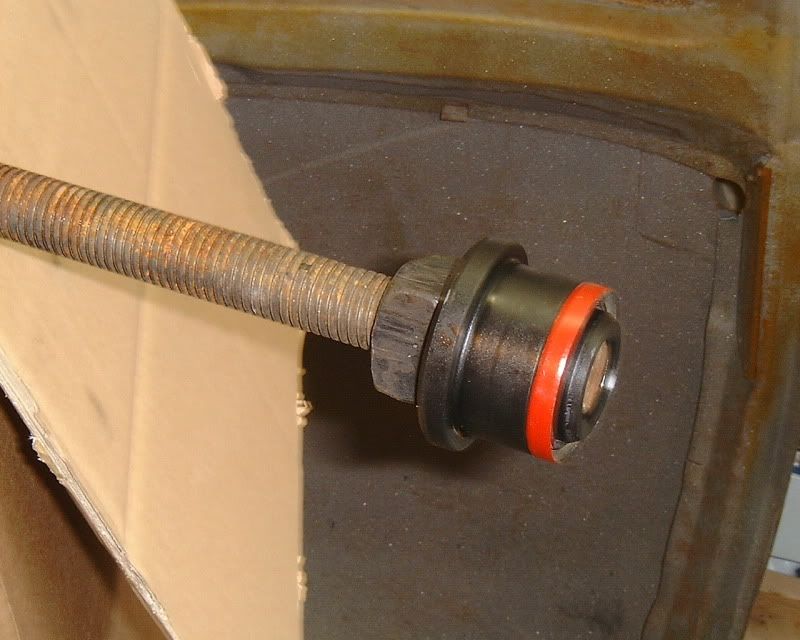

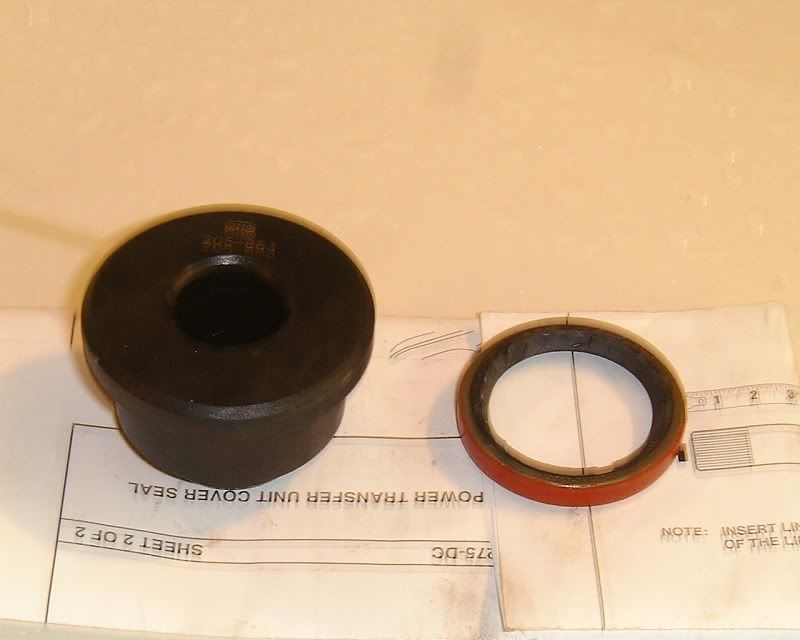

- Slip OTC tool 205-883 onto the threaded rod so it rests on the nut. Check the end for nicks or burrs that could cut the seal.
- Coat tool 205-883 with a light coat of ATF then slip the seal onto the tool facing the correct way.
- The seal will come coated with black grease. Do not remove this grease.

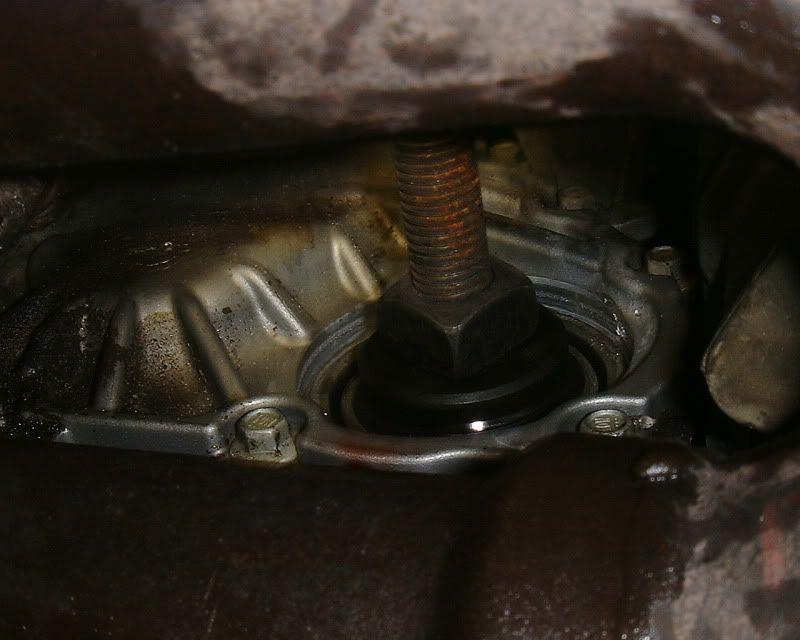

- Feed the treaded rod in from the passenger wheel well and center it over the opening.
- When straight, hammer the seal in place. Seat it completely with tool 205-883.
- Remove the rod. Remove the seal installer.
- Insert the intermediate shaft spacer and press it all the way in by hand.
- Set up the nut on the threaded rod so it fits deflector installer tool 205-882

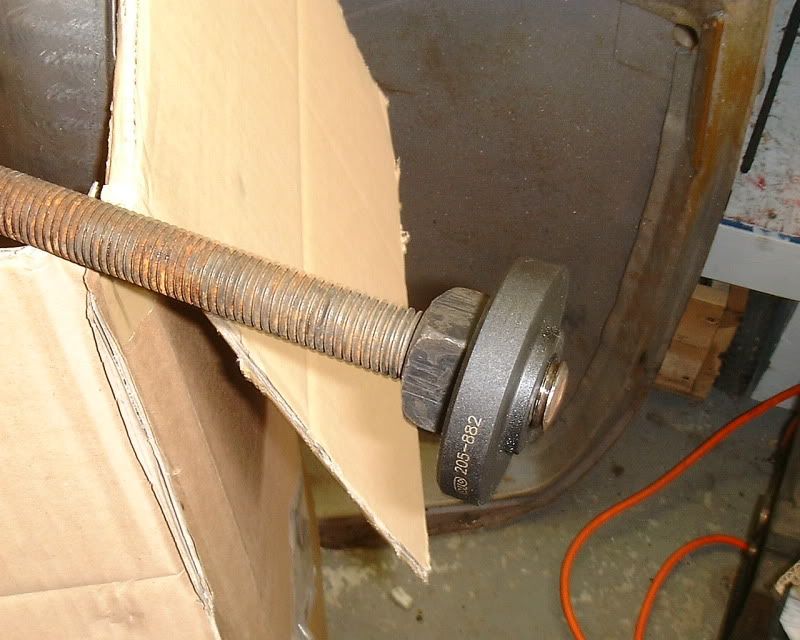

- Slip OTC tool 205-882 onto the threaded rod so it rests on the nut
- Coat the outside surface of the deflector with grease

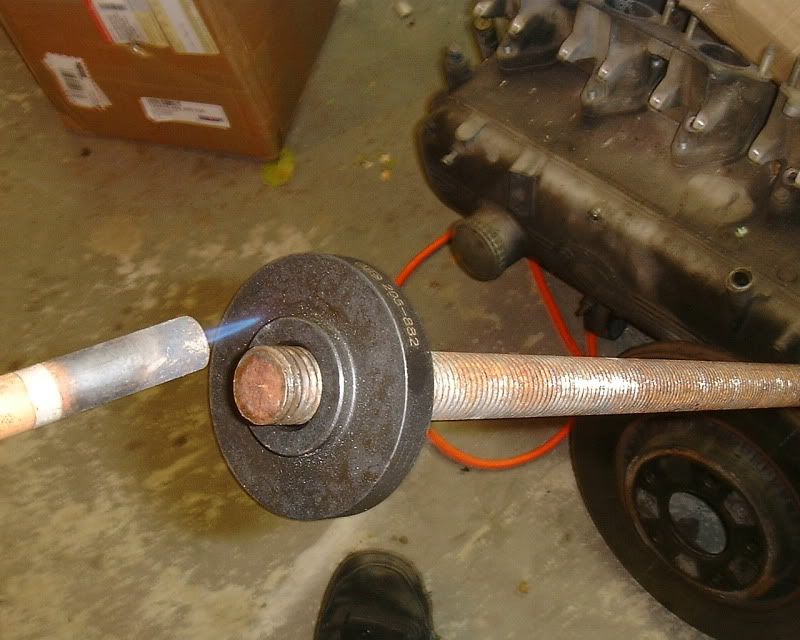

- Heat the threaded rod and tool 205-882 with a propane torch to a temperature of around 100˚C. If you don’t have a infrared thermometer you could use this trick. Heat up the tool with the torch. Test it’s temperature by placing a single drop of water on the installer. If the water boils it is too hot, let it stand for a minute to cool and repeat until the drop of water doesn’t boil.
- Once the installer is up to temperature, drop the deflector onto the installer and check it’s temperature with the thermometer. It should be between 60 and 100 degrees C.
- Quickly feed the rod in from the passenger wheel well and position it over the hole.
- With a 3lb or 5lb hammer drive the deflector on. With 2 or 3 hits with a 3lb hammer my deflector snapped into place. The TSB says you can hit the deflector quite hard, just ensure it’s up to temperature first otherwise you risk breaking it. Sorry, no pictures of this step.
- Check to see the lip of the deflector is 3mm to 5mm below the surface of the PTU housing.

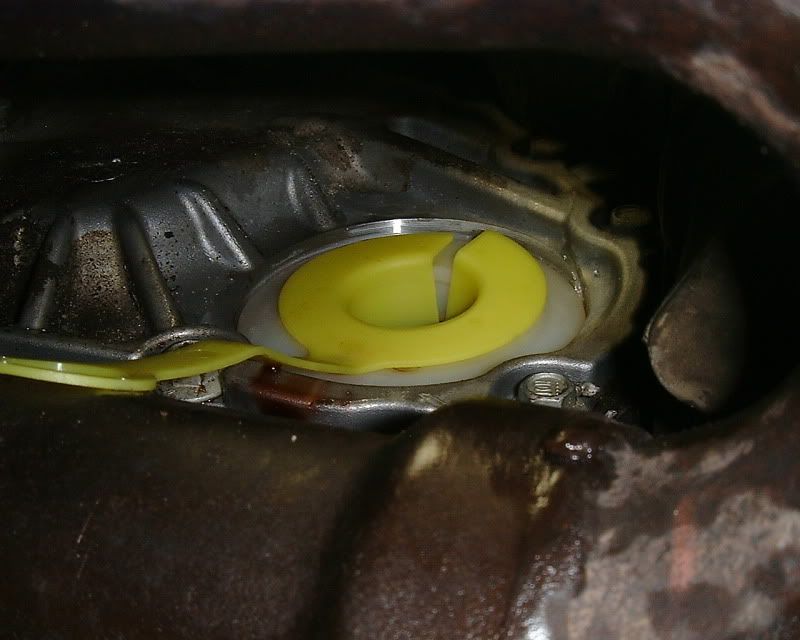

- Install the seal protector in the opening.
- Clean off the intermediate shaft with brake parts cleaner to insure no dirt or sand is on the splines or shaft.
- With a tape measure and felt pen, place two marks on the shaft at 5” and 7”
- Insert the intermediate shaft. Using a bit of force to push past the seal protector. Insert up to a point between the marks.
- Pull back and off the seal protector from the shaft
- Finish inserting the intermediate shaft until it bottoms. Line up the support bearing onto the two threaded studs at the same time.
- Install the two 13mm nuts and tighten
- Reassemble the steering, suspension and brakes in the reverse order from above
- Tierod end nut
- Lower ball joint nut
- Strut pinch bolt
- Brake carrier to knuckle assembly with blue threadlocker on threads
- ABS sensor
- Brake rotor countersunk bolt with anti-seize applied to threads
- Wheel lug nuts - Leave the axle shaft nut off until a point where the tire is back on and the vehicle is back onto the ground
- Once the vehicle has been lowered back onto its tires. Apply a drop or two of blue threadlocker to the axle shaft threads and install the nut.
- Tighten to 250 ft/lbs??? (still need the correct torque value on this nut)
- Refill transmission
- Start and test drive vehicle
- Check for leaks, re-check fluid level once the transmission has warmed up.
- The first drive should burn off the residual oil left on the exhaust pipe.

Before I repaired this my 2009 Taurus X would drip ATF everyday onto my driveway making stains about 12” in diameter. The smoke it would make in the cabin was unbearable at times. During cold weather the leak would get worse but towards the end there wasn’t a day that would go by that it wouldn’t leak. It’s been a couple of weeks now since I fixed it and it hasn’t dripped once and absolutely no more smoke.

Thanks for reading and work safe!
Attachments
Installer tools.pdf
(13.63 KiB) Downloaded 1164 times
SK 8T43-7275-DC.pdf
(63.95 KiB) Downloaded 1081 times
tsb09-25-07.pdf
(131.85 KiB) Downloaded 1026 times
Last edited by Trevor M on Sat Jul 28, 2012 2:12 pm, edited 1 time in total.


Hein
Regular Member
Posts: 31
Joined: Fri Feb 17, 2012 7:47 am

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by Hein » Fri Mar 16, 2012 6:49 am

Thank you for the awesome write up. I'm on the Saturn forums and a DIY thread like this would definitely gain "sticky" status. Excellent work!

My T-rex is under warranty so I"m going to check the seals and have them done if there is any oil. If it happens later when my warranty is up. I'll be checking here to make the repair.

-Hein

vtjohn
Regular Member
Posts: 20
Joined: Wed Oct 26, 2011 7:37 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by vtjohn » Fri Mar 16, 2012 5:48 pm

Just had mine done 6 weeks ago under Ford Certified warranty. Thank god my local shop had caught it while doing an oil change as I imagine this is an expensive fix. The Ford dealer took three days fixing it, I had a $200 deductible.

User avatar
mmsstar
Regular Member
Posts: 1100
Joined: Thu Dec 25, 2008 10:44 am

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by mmsstar » Fri Mar 16, 2012 6:02 pm

Great write up. I took the liberty of posting it over at FordFlex.net. Hope you don't mind.
Drove an 06 LTD FWD from July 08 to August 10, moved on to a 2011 Flex

Trevor M
Regular Member
Posts: 19
Joined: Sat Mar 10, 2012 12:36 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by Trevor M » Fri Mar 16, 2012 6:38 pm

Thanks and no I don't mind. The more people it can help the better.
When I was researching for info on this before I did the repair, I didn't find much which was discouraging. After I did the repair I thought I'd share.
I still don't know what this repair would cost at a dealer..... after 6 weeks I'm still waiting for them to return my calls....lol

pwschuh
Regular Member
Posts: 296
Joined: Fri Nov 26, 2010 9:09 am
Location: Mid-Atlantic

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by pwschuh » Sat Mar 17, 2012 3:57 pm

My T-Rex Limited not AWD but man that is a great write-up. Thanks for posting.
2008 TX Limited
Silver Birch Metallic/Black leather
WeatherTech floormats all rows
Bought used on 17 Nov 10 with 20,000 miles

StuartBS
Regular Member
Posts: 14
Joined: Sun Apr 22, 2012 5:39 pm
Location: Winnipeg, Manitoba, Canada

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by StuartBS » Sun Apr 22, 2012 6:27 pm

Trevor, if you were to get this done at the dealer, retail would cost 2-3 hours labor, plus parts. I am a tech at a local dealer and we do these on a regular basis. Most of the time it's warranty, but we still do some retail, too. It's not a hard job, but much easier if you have the correct tools as you have illustrated. Great pix, too! The illustrations are right out of the service manual.

Trevor M
Regular Member
Posts: 19
Joined: Sat Mar 10, 2012 12:36 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by Trevor M » Sat Jul 28, 2012 2:38 pm

Been meaning to update this for a while now. Been quite busy wrenching on my BMWs and don't often have a chance to stop by the Freestyle forum. When I first wrote it I really didn't have a solution for removing the nylon deflector. And maybe you noticed I glossed over that part :| When I did the seal I removed the deflector by breaking it out in pieces and melting the plastic which was far from the correct procedure. I needed to be very careful not to damage anything else besides the deflector otherwise I would have had a very expensive repair to deal with besides the seal.

I found a tool which closely duplicates the one recommended by the factory.

It's a blind hole bearing puller. The one I bought came as part of a set and the largest size (30mm) is a perfect fit for pulling the nylon deflector. The set is something I treated myself to. Not just for this job but it's useful for all sorts like clutch pilot bearing for example.

Basically how it works is the puller is inserted into the center hole of the deflector and tightened down. This causes the puller to expand within the hole and grip the inside edge. Shown below is the puller installed on a new deflector and in the expanded position.


Once installed, a slide hammer is screwed into the back of the puller. I guess you can figure out the rest.


Had the T-rex up in the air today getting a flat fixed and decided to peek and see if it's been leaking.
After 5 months there's not a drip!


bran1har
New Member
Posts: 9
Joined: Sun Mar 18, 2012 2:01 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by bran1har » Thu Nov 15, 2012 7:35 pm

can you buy the kit online. mine is leaking gear oil. ITs leaked atf in the past, so this would be the second fix. I want to buy the whole kit, do you know who sells it?

Trevor M
Regular Member
Posts: 19
Joined: Sat Mar 10, 2012 12:36 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by Trevor M » Sat Nov 24, 2012 11:34 am

bran1har wrote:can you buy the kit online. mine is leaking gear oil. ITs leaked atf in the past, so this would be the second fix. I want to buy the whole kit, do you know who sells it?
If you Google the part number you'll find lots of online suppliers for the kit. Me being in Canada had a hard time finding A) a Canadian supplier; and B) a US supplier that would ship internationally. But I did find one and it worked well for me.
Assuming you are in the US there will be plenty of places to buy this kit online. And if you can't get one online you could always walk into any Ford dealer and order it from the parts desk. Just be prepared to pay more :)

Hein
Regular Member
Posts: 31
Joined: Fri Feb 17, 2012 7:47 am

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by Hein » Tue Jan 01, 2013 7:53 am

Local dealership (Ray Schultens in The Dalles, OR) fixed my '08 yesterday at 35,071 miles. Service history showed that the seal(s) had been done before. It took the tech a little over 2 hours and there was no charge for the repair. :)

bran1har
New Member
Posts: 9
Joined: Sun Mar 18, 2012 2:01 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by bran1har » Sat Feb 16, 2013 8:47 am

This may be useful. PTU section from service manual.
Attachments
Taurus X PTU section servman.pdf
(1.47 MiB) Downloaded 3045 times

Trevor M
Regular Member
Posts: 19
Joined: Sat Mar 10, 2012 12:36 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by Trevor M » Wed Jun 19, 2013 7:24 pm

bran1har wrote:This may be useful. PTU section from service manual.
Awesome! Thanks much for this :mrgreen:

User avatar
Jaimster
Regular Member
Posts: 52
Joined: Thu Jul 15, 2010 11:09 am
Location: San Antonio, TX

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by Jaimster » Thu Jun 20, 2013 10:47 am

Does anyone know why this seems to be more of a Taurus X issue and not a Freestyle issue? Did Ford/Volvo change the design of the seal?
2006 Limited, AWD, 109K miles
All options exept nav

ceduarte
New Member
Posts: 8
Joined: Tue Feb 16, 2010 2:11 pm

Re: DIY - Taurus X Intermediate shaft seal replacement

Post by ceduarte » Sat Apr 26, 2014 6:18 pm

Does this post apply to a 2005 ltd awd fs? At 230k (cvt replaced at 154k). Leak is not yet serious and can only smell the burning fluid for a few moments when stopped then goes away. Thanks.

Post Reply
